• Turns every socket...

    …into a safe charging station!

SAFETY CONNECTOR SYSTEM
The new connector system shines through increased safety mechanisms, simple operation and a variety of innovative features that make NRGkick the most innovative mobile charging unit that is absolutely unrivaled on the market. All smart attachments also feature fully silver-plated contact parts that ensure long-lasting and smooth plugging operations.
The system is one of the keys of NRGkick. It consists of a connector unit that is permanently installed on the charging unit and smart attachments that enable charging at any socket and at public charging stations.
LED STATUS INDICATOR
The connector unit has an LED circuit that serves as a status indicator and informs the user about the charging status or possible problems during the charging process.

Safety Connector System

The new connector system is one of the keys of NRGkick. It consists of a connector unit that is permanently installed on the charging unit and smart attachments that enable charging at any socket and at public charging stations.

The new connector system shines through increased safety mechanisms, simple operation and a variety of innovative features that make NRGkick the most innovative mobile charging unit that is absolutely unrivaled on the market. All smart attachments also feature fully silver-plated contact parts that ensure long-lasting and smooth plugging operations.

LED-Status Indicator

The connector unit has an LED circuit that serves as a status indicator and informs the user about the charging status or possible problems during the charging process.

CHARGE FAST

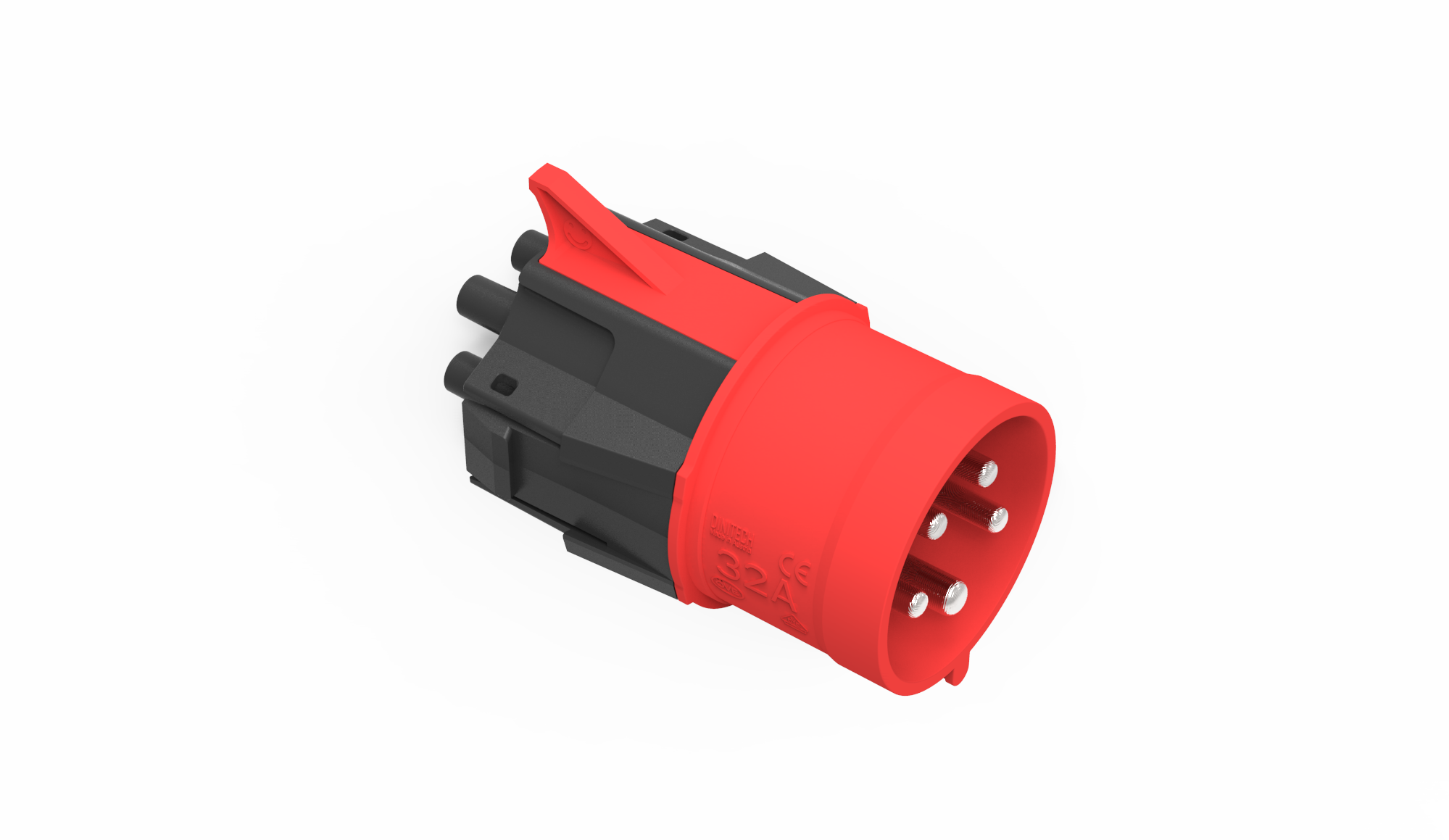

Full power for short charging times! The NRGkick smart attachments not only offer the possibility to charge at any socket, but also to use the full speed and charging power. NRGkick and the smart attachments allow the use of all 3 phases of the 400 V three-phase grid and therefore enable charging powers of up to 22 kW.

The maximum charging powers of the respective smart attachments are:

Smart Attachment 32A, 5PoleSmart Attachment 32A, 3PoleSmart Attachment 16A, 5PoleSmart Attachment 16A, 3PoleSmart Attachment domestic plugSmart Attachment Type 2Wall Socket 32AWall Socket 16A
3

phases used

32 A

maximum charging current

22 kW

maximum charging power

1

phases used

32 A

maximum charging current

7,4 kW

maximum charging power

3

phases used

16 A

maximum charging current

11 kW

maximum charging power

1

phases used

16 A

maximum charging current

3,7 kW

maximum charging power

1

phases used

13 A

maximum charging current

3 kW

maximum charging power

3

phases used

32 A

maximum charging current

22 kW

maximum charging power

3

phases used

32 A

maximum charging current

22 kW

maximum charging power

3

phases used

16 A

maximum charging current

11 kW

maximum charging power

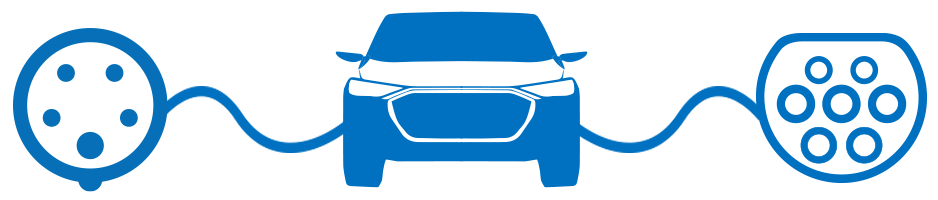

MODE 2 AND MODE 3 CHARGING FUNCTION

With the new connector system, it is not only possible to charge your electric car at any standard socket, but also at public charging stations. This allows NRGkick to be used as a Mode 2 and as a Mode 3 charging cable, replacing the need for an additional Type 2 cable – saving money and increasing convenience! This makes NRGkick the only charging cable you need to charge your electric car!

Automatic smart attachment identification
The Smart Attachment used is  intelligent and not only for  example transmits the  temperature values measured at each phase pin or a country specific charging current limit to the NRGkick it is also identified by the NRGkick charging unit. This ensures that, for example, with an NRGkick Smart Attachment 16 A one can charge with a maximum of 16 A.

Automatic Smart Attachment Identification

The smart attachment used is intelligent and not only for example transmits the temperature values measured at each phase pin or a country-specific charging current limit to the NRGkick – it is also identified by the NRGkick charging unit.
This ensures that, for example, with an NRGkick smart attachment 16A only can charge with a maximum of 16A.

WATERPROOF ACCORDING TO IP67

he extraordinarily high protection classification IP 67 states that wetness absolutely cannot harm the charging unit Even submerging the charging unit under water would not cause any damage or impairment While other charging solutions already run into problems in a light drizzle, NRGkick can withstand a monsoon with ease.

By the way Even if NRGkick gets soaking wet, operation via the touch sensitive surface continues to work perfectly (in winter even with gloves, to protect fingers that are very sensitive to cold…)!

HOT UNPLUG PROTECTION

Hot Unplug Protection is integrated into the connector unit of the NRGkick. This detects a disconnection of the connector unit at an early stage, terminates the supply and prevents arcing when the NRGkick is removed. A special mechanism interrupts the power supply before the pins of the smart attachment have even left the socket. This guarantees absolute safety when connecting and disconnecting to the mains!


TEMPERATURE MONITORING

NRGkick permanently monitors the temperature at each smart attachment – regardless of whether you are charging at a domestic plug socket or a three-phase connection.

Even if a poorly connected socket leads to a dangerously high temperature, NRGkick has the situation under control for you: The temperature mangement ensures that the charging current is reduced or even completely interrupted before the temperatures become critical and something can happen!

COMPACT
The smart attachments were designed in such a way that they take up particularly little space and weight and at the same time fit comfortably in the hand. The new connector unit system also eliminates unnecessary cables, making it even easier to take the matching smart attachment with you on your travels.
Due to the small dimensions of the smart attachments, they can be taken anywhere - no matter whether in the trunk, in the frunk or in the NRGkick transport bag.
Die Steckeraufsätze wurden so konzipiert und designed, dass sie besonders wenig Platz und Gewicht einnehmen und gleichzeitig gut in der Hand liegen. Durch das neuartige System der Steckereinheit konnten außerdem unnötige Kabel eingespart werden, wodurch der passende Steckeraufsatz noch leichter auf Reisen mitgenommen werden kann.
Durch die besonders geringen Abmessungen der Steckeraufsätze können sie überallhin mitgenommen werden – ganz egal, ob im Kofferraum, im Frunk oder in der NRGkick-Transporttasche.

Compact

The smart attachments were conceived and designed in such a way that they take up particularly little space and weight and at the same time fit comfortably in the hand. The new connector unit system also eliminates unnecessary cables, making it even easier to take the matching plug attachment with you on your travels.
Due to the particularly small dimensions of the smart attachments, they can be taken anywhere – no matter whether in the trunk, in the frunk or in the NRGkick transport bag.

PHASE DETECTION AND REVERSE POLARITY PROTECTION

The new connector system ensures that NRGkick will not be damaged even if electrical installations are incorrectly installed. The connector unit detecs, for example, whether phases and neutral have been reversed and protects the electronics of the NRGkick from possible overvoltages.
